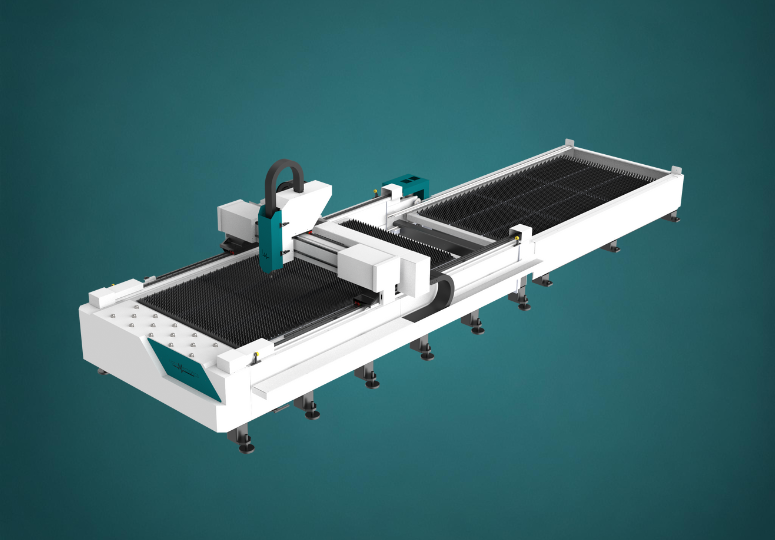

Open Sheet And Pipe Cutting

Our machine provide a quick switch between tube/profile and sheet, plus the space-saver feature, FlashKut Pipe cutter Series is the best for you as a beginner or with multiple cutting demands. Compact layout with dual Application.

The heavy-duty frame structure with the large-scale milling of the guide rail seat and the design of the hollow bed body have good rigidity and high strength, and can effectively reduce thermal effects and isolate heat.

The gantry designed by light mechanics is made of aviation aluminum material, which achieved best effect of stable operation under rigorous testing and mechanical analysis.

Technical Specifications

Processing Area 3000mm x 1500 mm and Pipe processing range 6000mm* φ10~160mm (square tube: 10*10-110*110mm).
Maximum Speed 100m/min
Maximum Acceleration 1.5G
X/Y Positioning Accuracy 0.05mm
Laser Power Upto 20KW
Max Loading Weight 1500kg
Transmission Dual drive + Gear

Advantages

  • Intelligent feedback device with a digital signal processing controller, which can be adjusted for different load conditions, stable operation, low maintenance cost, and fast response speed.
  • High precision rack and pinion and ball screw, high stability and cutting
  • Heavy duty structure which is built for stable operation and long life
  • Comprehensive safety interlocking and alarm functions to reduce potential safety hazards.
  • Quick switch between tube/profile and sheet, and it also require less floor space.
