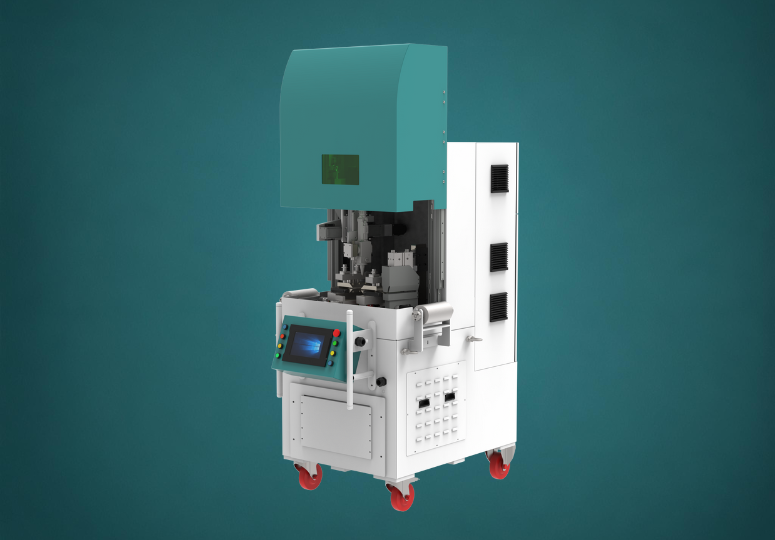

Laser Cross Welders

Machine specifications

Tape Materials: Steel, Stainless Steel, Aluminium, Copper, Composites, Alloys of Al, Cr, Ni, Ti, Electric Steel etc.

• Tape/Coil Width: 20mm to 1400mm
• Tape/Coil Thickness: 0.05mm to 2mmSS, 0.10-2mm Al, 0.10-1mm Cu
• Laser Power: 500W to 2KW
• Weld Pattern: Straight Line and CrossWelds

Special features

• 1. Compact machines with minimal footprint
• Capable of butt welding alloy tapes/coils up to a width of 1400 mm.
• Ability to process the widest range of materials with thickness starting from 0.05mm
• Precise mechanical guiding and automatic aligning of metal tapes
• Rapid, hands-free cutting, welding and flattening of the tapes
• Integrated with weld-seam flattening roller to eliminate or minimize weld bulge
• Use of same laser for both cutting and welding to cover a range of alloy materials and thicknesses to meet customer needs and requirements
• Air-cooled lasers eliminates the use of chillers for cooling
• Automated Alloy tape In-feed and out-feed with accurate positioning
• High quality and repeatable butt welds
• Plug and Play system makes it very easy to operate
• No pre and post processing required
• Tailor-made for 24/7 continuous production
• User friendly touch panel with menu guided system for easy rapid establishment of new weld recipes
• Easy evacuation of trim waste
• In-line weld seam detection (Optional)
• Option for shield-gas to eliminate any chances of oxidation during cutting and welding (Optional)
• Fume Extractor to avoid dust ingress and protection of weld optics (Optional)
• RFID Recognition Badge / Industry 4.0 Ready (Optional)
• QR/Barcode Reader for recipe identification (Optional)
