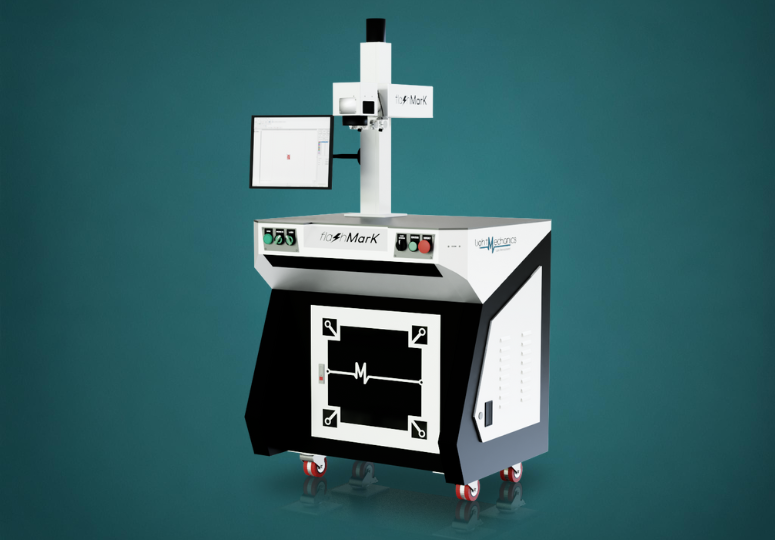

The “flashMark” Workbench model is a compact integrated solution which has the ability to accommodate all kinds of laser marking requirements with great ease. The auto focus option enables automatic adjustment for variations in focus from one part to the next and ensures ease of use with superior quality marking. The workbench model becomes the first choice when it comes to processes like marking, engraving and etching barcodes, data matrix codes, QR-codes, serial numbers and logos on a variety of surfaces. It is a more flexible all round solution for convenient marking allowing the operator to operate from three sides.

Technical Specifications

Laser Type Fiber laser and CO2
Laser Power 20 W – 200 W
Scanning speed 10,000 mm/sec
Mark 2D and 3D surfaces
Marking line Min 0.05 mm
Marking field 110 mm x 110mm to 330 mm x 330 mm
Machine dimension 800*700*1700 mm


  • Marking mechanics software for user friendly operations
  • Forced Air cooling system
  • Motorized z axis (Optional)
  • Ultra hi-speed on static marking and Mark on the Fly
  • Compact and sturdy design
  • Suited for Standalone marking
  • Extremely fast hi-speed galvanometer with scanning speed of 10,000 mm/sec
  • 24/7 Non-stop marking
  • Easy production line integration
  • Fume Extractor (Optional)
  • Rotary Attachment (Optional)
  • X & Y Axis guides (Optional) for marking on bigger samples
  • This model is CE, FCC certified and also quality control in accordance with ISO 9001:2015 ( IAS-IAF) quality system standard
