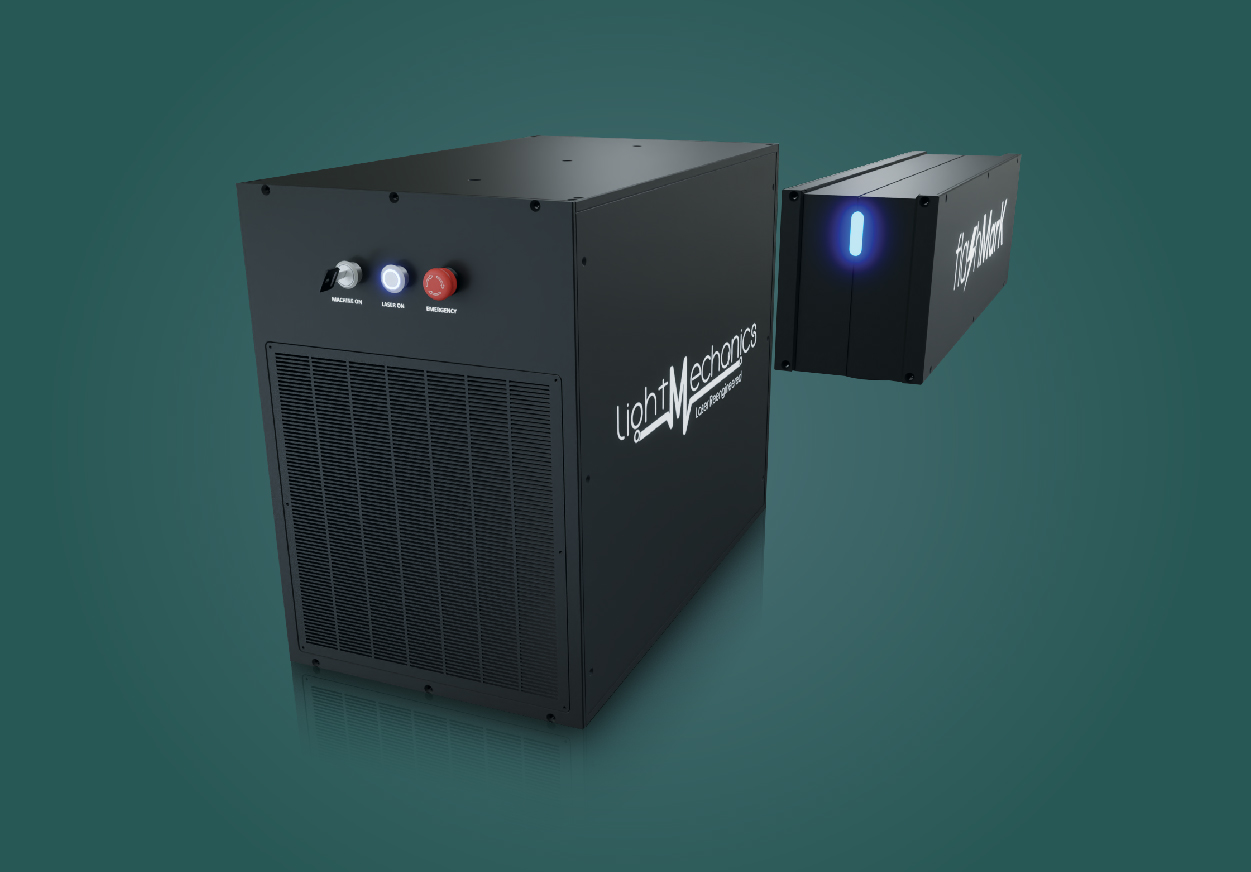

The “flashMark” Benchtop model is designed to laser mark on various metal and non-metal surfaces offering optimum combination of high power and high pulse frequencies especially suited for applications demanding high power requirements and short cycle times. This aesthically designed Benchtop model can perform various processes like marking, engraving and etching barcodes, data matrix codes, qr-codes, serial numbers and logos on a variety of surfaces.
Technical Specifications
| Laser Type | Fiber laser, UV laser and CO2 laser |
| Laser Power | 10 W – 200 W |
| Scanning speed | 10,000 mm/sec |
| Mark | 2D and 3D surfaces |
| Marking line | Min 0.05 mm |
| Marking field | 110 mm x 110mm to 330 mm x 330 mm |
Features:
- Marking mechanics software for user friendly operations
- Forced Air cooling system
- Motorized z axis (Optional)
- Ultra hi-speed on static marking and Mark on the Fly
- Compact and sturdy design, Lightweight , portable
- Can be stationed on any flat surface (table or floor)
- Extremely fast hi-speed galvanometer with scanning speed of 10,000 mm/sec
- 24/7 Non-stop marking
- Easy production line integration
- Fume Extractor (Optional)
- Rotary Attachment (Optional)
- This model is CE, FCC certified and also quality control in accordance with ISO 9001:2015 (IAS-IAF) quality system standard
